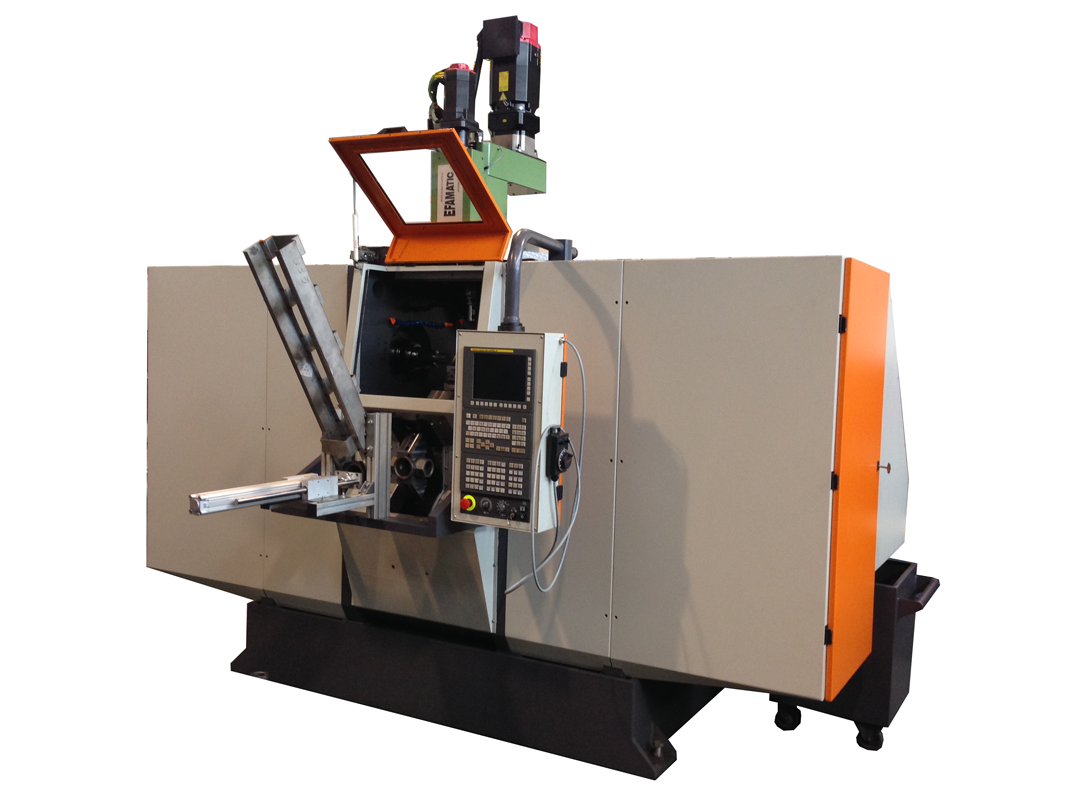

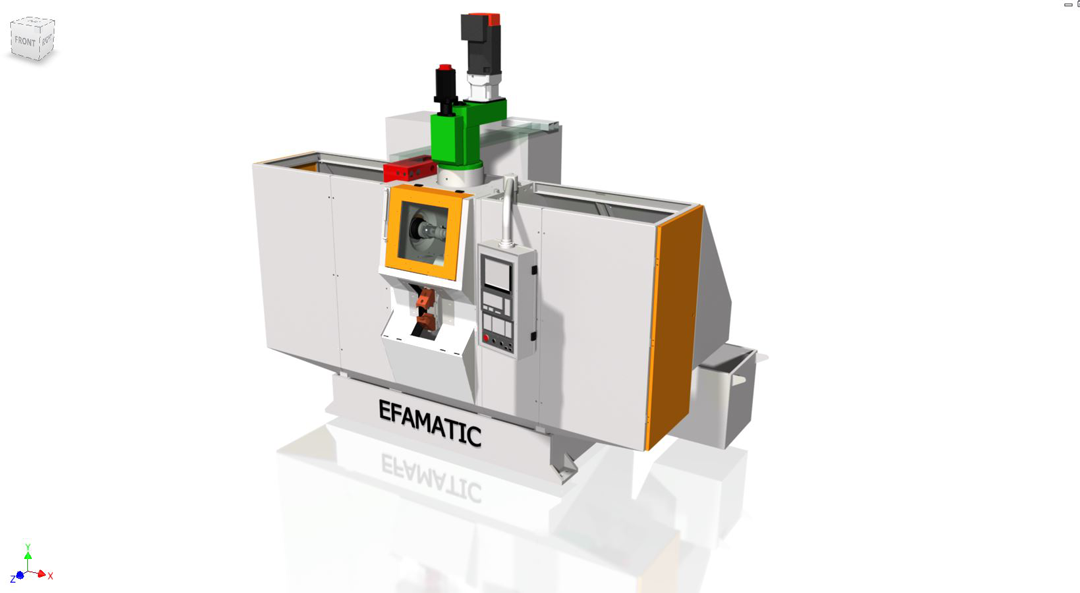

RTM-6

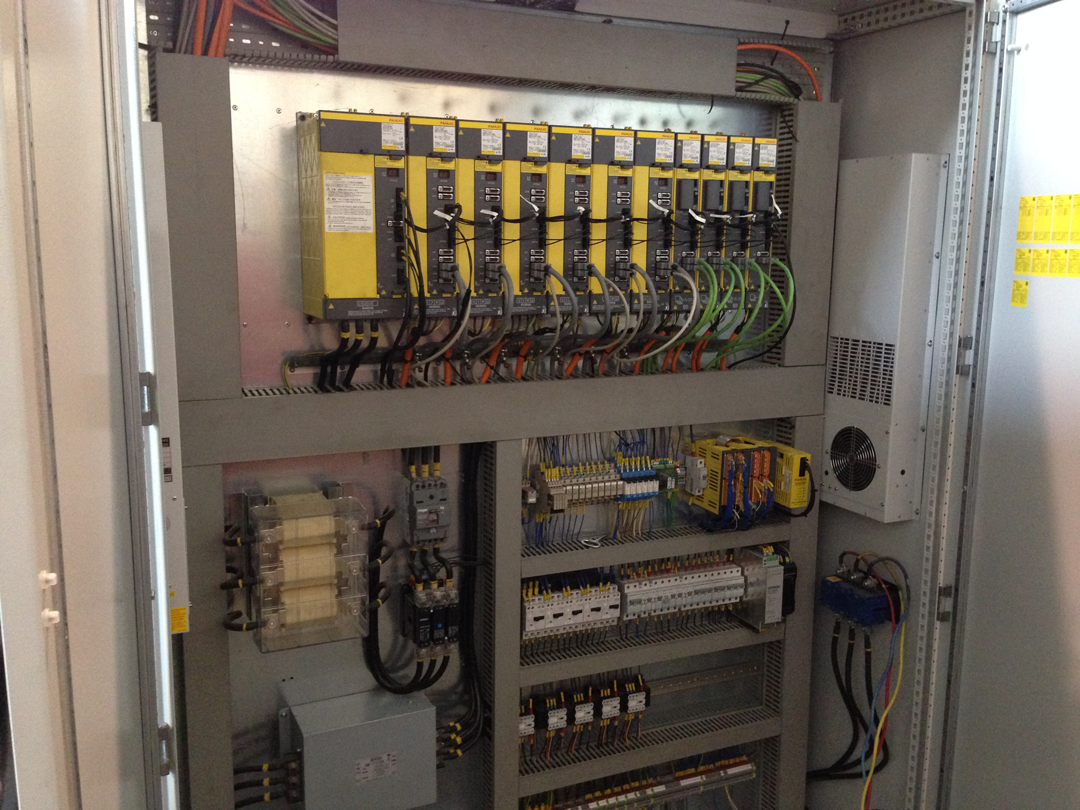

4 station (1 loading, 2 machining, 1 cleaning) Fanuc 30iB CNC Control with 6 path (3 heads at each of the 2 machining stations, 1 path per head) with 6 Spindles & 6 Servo’s. Rigid tapping available for up to 2″ threads. Loading/offloading magazine as shown is optional.

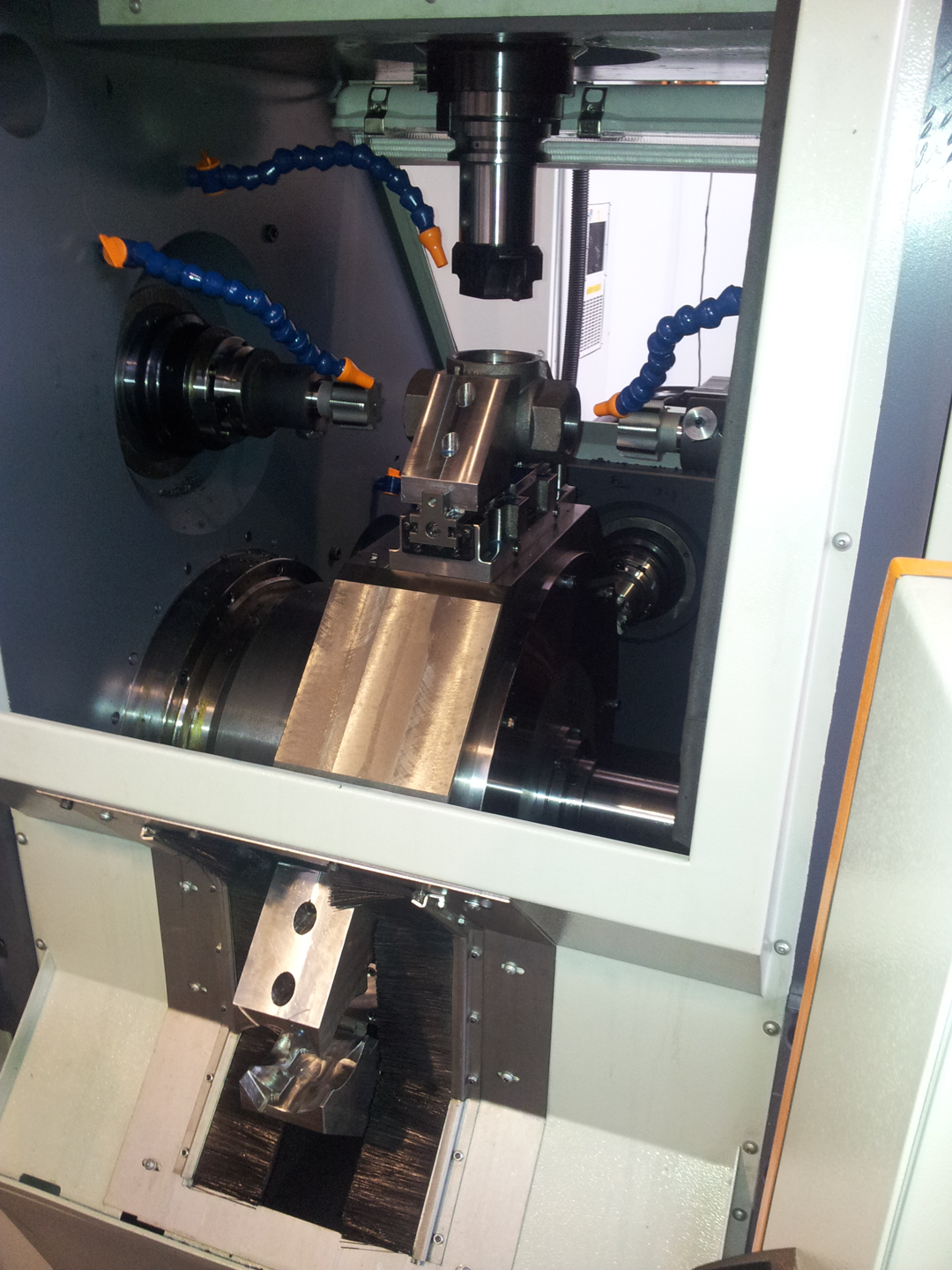

Precision servo indexing table with hydraulic clamping and self-centering grippers on each station.

Included accessories: Scraper conveyor with bin, coolant with adjustable nozzles as well as handheld spray gun, 3-colour tower light.
